Features & Benefits

  • Standard 19" rackmount 1RU chassis compatible
  • High-efficiency of air inlet/outlet design
  • LED display monitoring fan status
  • Input 90~264VAC@43-63Hz with PFC Function
Form Factor (H) x (W) x (D)1RU, 19" Rackmount Chassis
1.75" x 16.93" x 15.59"
44.4 mm x 430 mm x 396 mm
Fan Module6x 97 mm Blower Fan
30.5 CFM per Blower Fan
55.8 dBA per Blower Fan
Control Panel1x System Power Button
Indicator1x Power Status LED
6x Fan Status LED
Electrical RequirementsW/ PFC, AC 90~264V Full Range, 47Hz~63Hz
EnvironmentalOperating: 10˚C~35˚C (50˚F~94.9˚F)
Non-operating: -40˚C~70˚C (-40˚F~158˚F), 5% ~85% Non-condensing
Weight7kg (15Ibs)
Part NameOrder CodeDescriptionMSRP (USD)Gallery
No data have found.
DescriptionVersionSizeUpload DateDownload Link
Data Sheet4.0268KB2013-08-23
SKU NumberDescriptionGallery

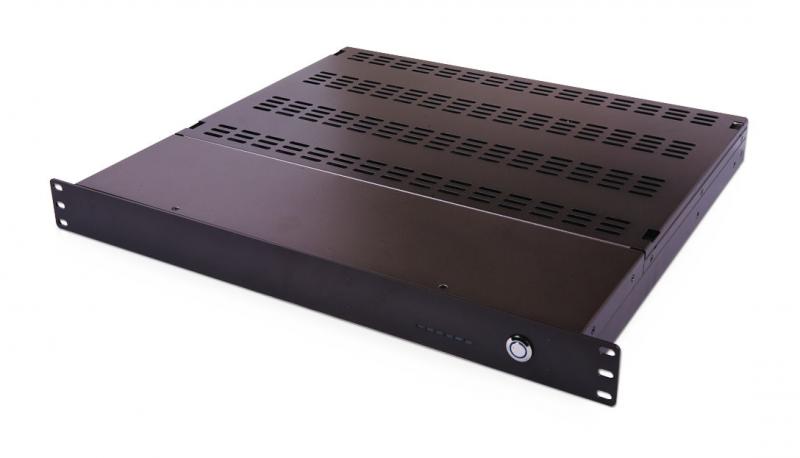

1U06FBL-614191x 1RU, 19" Rackmount Fan Tray
