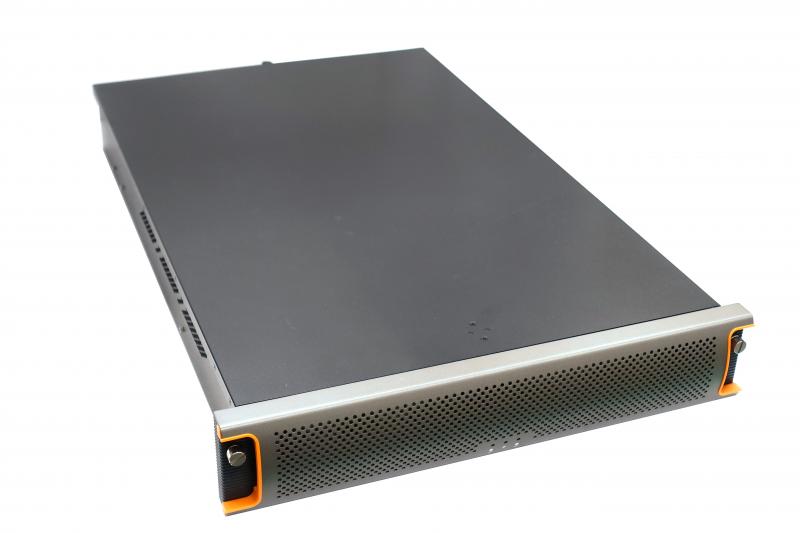

2U24BJB

Features & Benefits

  • Excellent anti-vibration mechanical design and thermal solution
  • EMCU provides audible alarm and LED function
  • High-efficiency 500w (1+1) redundant power supply
  • Support 6Gb/s SAS/SATA

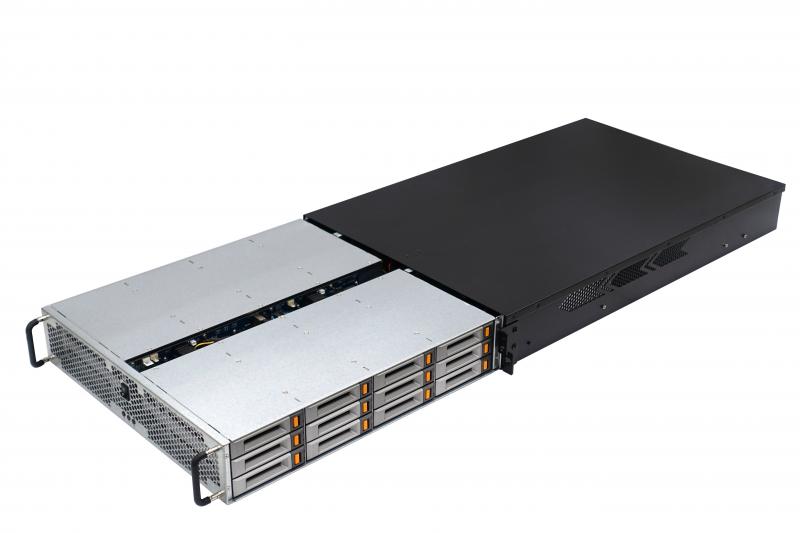

  • Fully utilized space to support 24 x 3.5" hot-swap HDD
2U24BJB
Form Factor (H) x (W) x (D)2RU 24-Bay, 19" Rackmount Chassis
3.47" x 17.53" x 27.55"
88.2 mm x 445.2 mm x 700 mm
I/O ControllerSingle 6Gb/s SAS 2.0
Host InterfaceOne 6Gb/s SAS 4x Wide Ports via SFF-8088
Expansion InterfaceOne 6Gb/s SAS 4x wide port via SFF-8088

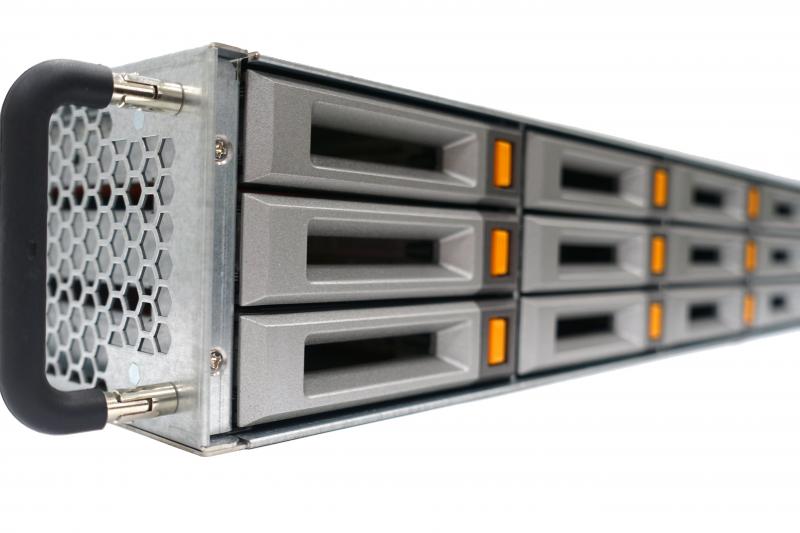

Drive Bay24x 3.5" Hot Swappable Drive Caddy
Support 6Gb/s & 3Gb/s SAS and SATA Drive
Control Panel1x System Power Button
1x Alarm Release Button
Indicator1x Power Status LED
1x Overheat LED
1x Fan Failed LED
1x HDD Status LED per HDD
1x HDD Failed LED per HDD
Fan Module2x 80 mm Cooling Fans

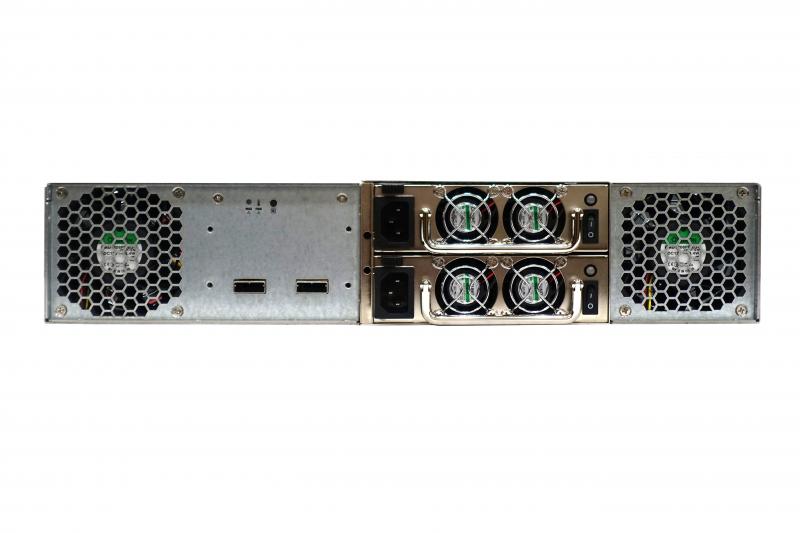

Electrical RequirementHigh-efficiency 500w (1+1) Redundant Power Supply
W/ PFC, AC 90~264V Full Range, 47Hz~63Hz
Monitor and AlarmOverheat Monitoring and Warning
System Fan Module Status Monitoring and Warning
Power Supply Unit Status Monitoring and Warning
HDD Status Monitoring and Warning
EnvironmentalOperating: 10˚C~35˚C (50˚F~94.9˚F)
Non-operating: -40˚C~70˚C (-40˚F~158˚F), 5% ~85% Non-condensing
WeightEnclosure: 24kg (53Ibs)
Packaged: 32kg (71Ibs)
(Hard Drive and Slide Rail Not Included)
Package Dimension (H) x (W) x (D)291 mm × 591 mm × 881 mm
Part NameOrder CodeDescriptionMSRP (USD)Gallery
3.5" Hard Drive CaddyHDC35-002-BL3.5", BlueCall
27" Ball Bearing SlideSLR-DS-2701 27", Ball BearingCall
3.5" Hard Drive CaddyHDC35-002-BR3.5", BrownCall
3.5" Hard Drive CaddyHDC35-001-BL3.5", BlueCall
3.5" Hard Drive CaddyHDC35-001-BR3.5", BrownCall
3.5" Front CoverHDC35-901-GR3.5", GreenCall
DescriptionVersionSizeUpload DateDownload Link
Data Sheet1.0218KB2017-09-20
SKU NumberDescriptionGallery
2U24BJB-511156Gbps SAS to SAS
1x 2RU JBOD Storage Subsystem
24x 3.5” Hot Swappable HDD Caddy
1x Host Connector
1x External Connector
1x 500w (1+1) Redundant Power Supply
2x 80mm Cooling Fans
