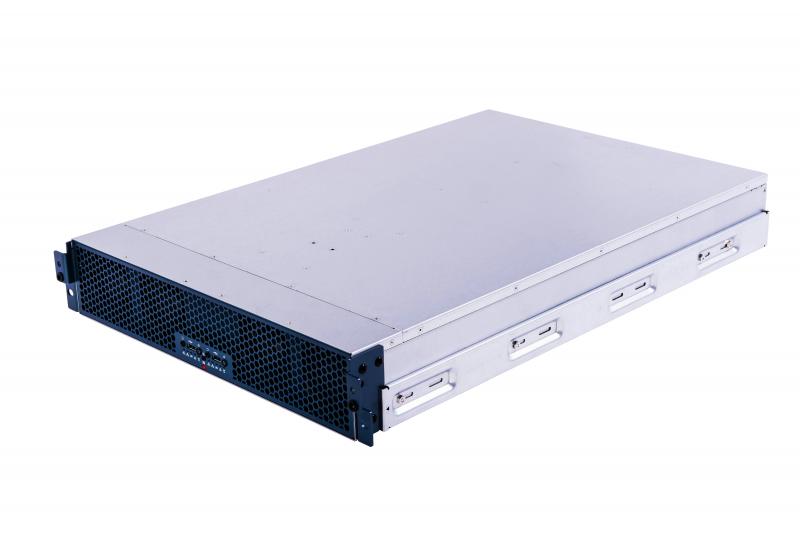

2UTWIN Gen.3

Features & Benefits

  • Dual individual operating system
  • Modular configurations to optimize performance
  • Up to 4 Intel® Xeon® E5-2600 v3 & v4 family processor, DDR4-2400 memory
  • Support four PCIe Gen2 x8 standard cards
  • High efficiency 800W (1+1) redundant power supply
  • Excellent anti-vibration mechanical design and thermal solution

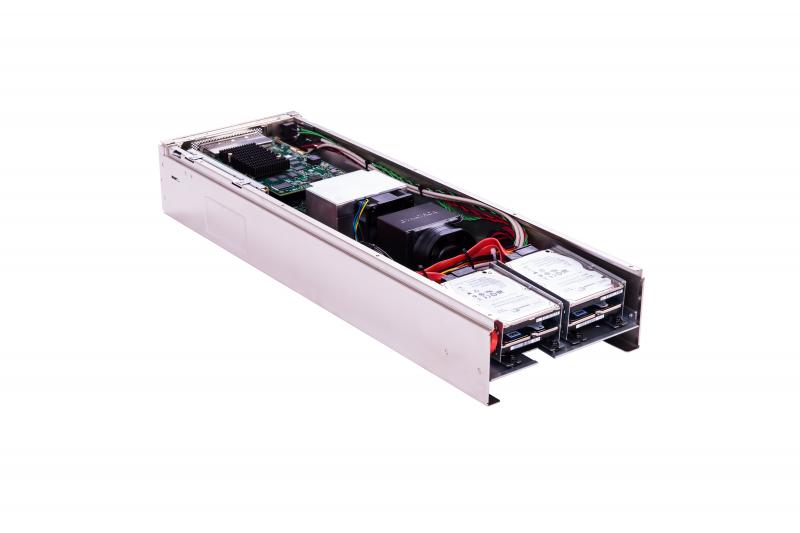

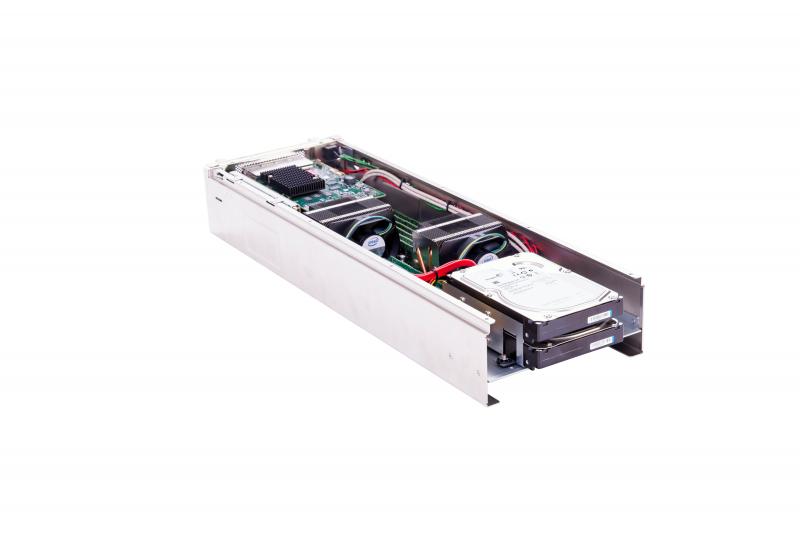

  • The motherboard module supports hot-pluggable

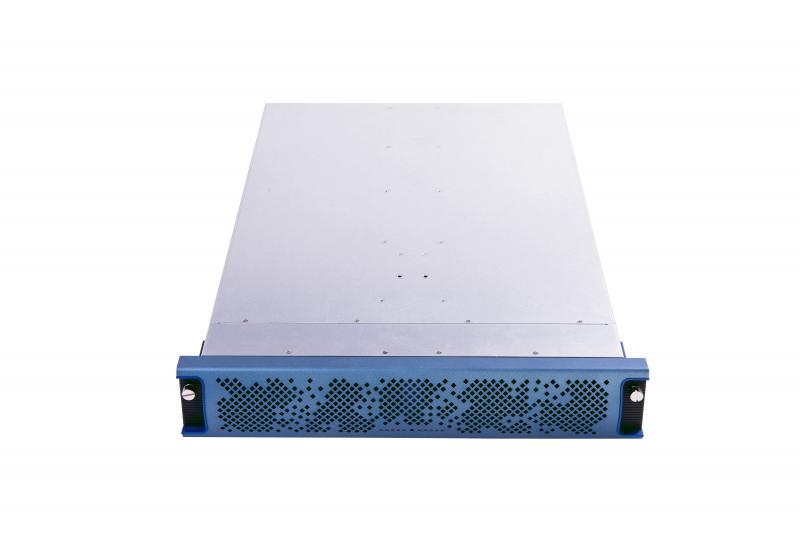

  • Customized bezel with color, logo and air filter cover
2UTWIN Gen.3
Form Factor (H) x (W) x (D)2RU , 19" Rackmount Chassis
3.47" x 17.2" x 26.38"
88.1 mm x 437 mm x 670 mm
Motherboard2x DP Xeon® Server Motherboard (1 for each node)
QPI Up to 9.6 GT/s
Intel® C612 chipset
CPU4x 2011-pin LGA Socket R (2 for each node)
Supports Intel® Xeon® Processors E5-2600 v3 or E5-2600 v4 Family
System MemoryUp to 16x DDR4 DIMM Sockets (8 for each node)
Up to 1024GB 2400/2133/1866/1600MHz DDR4 ECC 3DS LRDIMM per Node
Up to 512GB 2400/2133/1866/1600MHz DDR4 ECC LRDIMM per Node
Up to 256GB 2400/2133/1866/1600MHz DDR4 ECC RDIMM per Node
Drive Bay2/4x Fixed Anti-Vibration HDD Bracket
Supports up to 4x 3.5" or 8x 2.5” SATA HDD (2/4 for each node)
SATA 3.0 ports (6Gb/s)
StorageIntel® C612 chipset SATA 6.0 Gbps Controller
RAID 0, 1, 5, 10 support
Button4x System Power Button (2 rear/2 front)
4x System Reset Button (2 rear/2 front)
1x Buzzer Reset Button
2x UID Switch
Indicator2x Power On LED
2x Fan Failed / System Overheat LED
2x HDD Access LED
4x Network Activity LED
1x Power Failed LED
Expansion Slot4x Standard PCIe Gen.2 x8 Slot (FH/HL) (2 for each node)

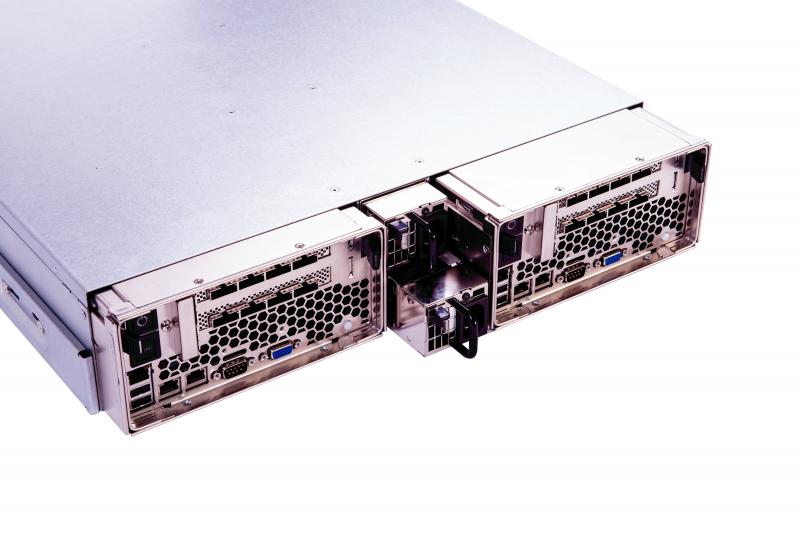

I/O Port2x External DB-9 Serial Port
4x RJ45 LAN Port
2x RJ45 Dedicated IPMI LAN Port
6x USB 2.0 Port (4 rear/2 front)
2x VGA Port
Fan Module4x PWM Cooling Fan
Electrical RequirementHigh-efficiency 800w (1+1) Redundant Power Supply
W/ PFC, AC 90~264V Full Range, 47Hz~63Hz
EnvironmentalOperating: 10˚C~35˚C (50˚F~94.9˚F)
Non-operating: -40˚C~70˚C (-40˚F~158˚F), 5% ~85% Non-condensing
WeightEnclosure: 23kg (51Ibs)
Packaged: 31kg (68Ibs)
(Hard Drive and Slide Rail Not Included)
Package Dimension (H) x (W) x (D)300 mm × 600 mm × 900 mm
Part NameOrder CodeDescriptionMSRP (USD)Gallery
No data have found.
DescriptionVersionSizeUpload DateDownload Link
Data SheetV1.0277KB2019-10-23
