Features & Benefits

  • Support up to 6.0 Gbps SAS/SATA
  • Fully utilized space to support 4 x 3.5" hot-swap HDDs
  • Outstanding wire-less design

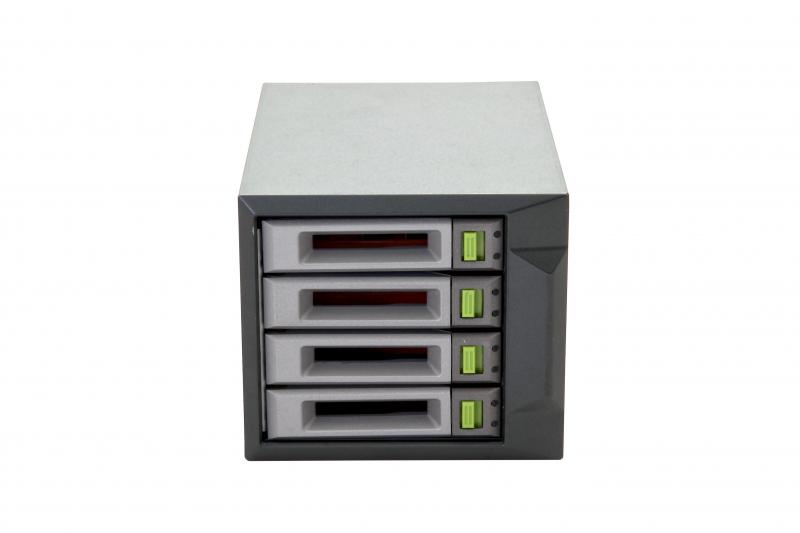

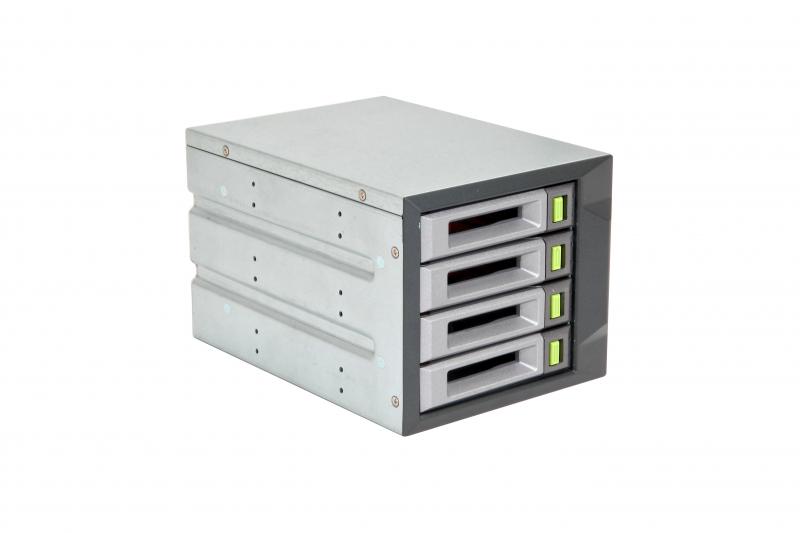

Form Factor (H) x (W) x (D)Mobile Rack, 4-Bay
7.99" x 5.75" x 5.02"
202.3 mm x 146.1 mm x 127.5 mm

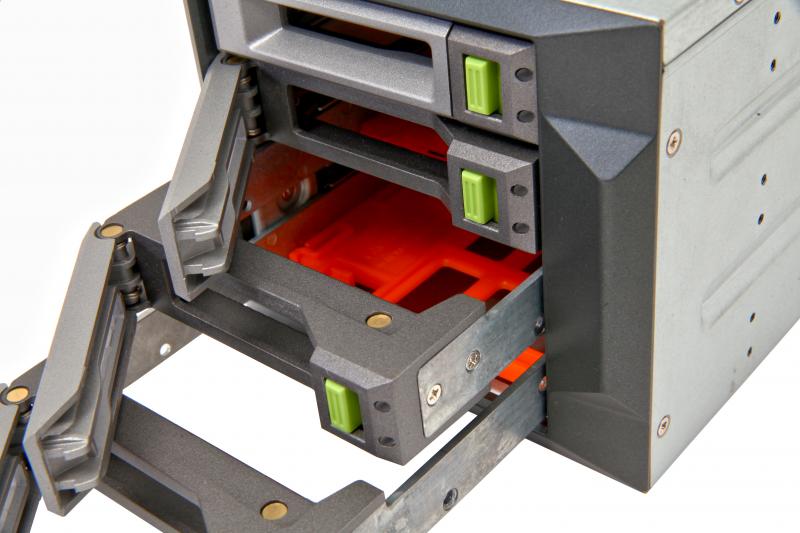

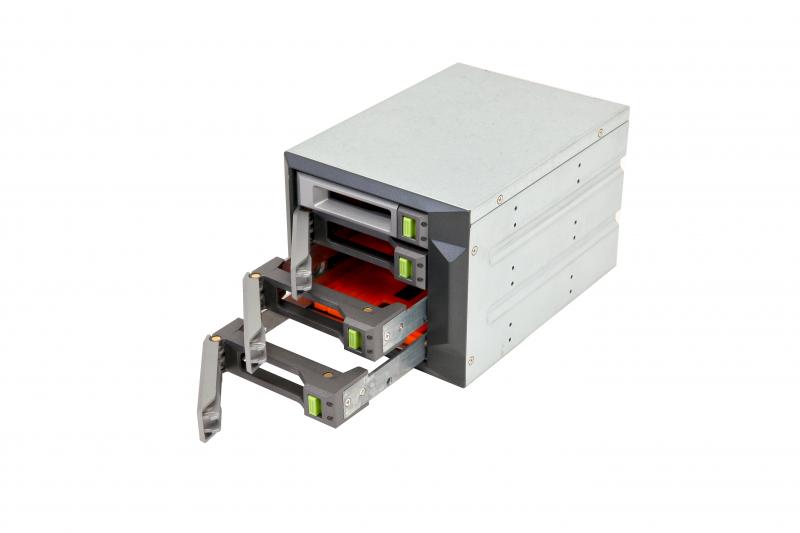

Drive Bay4x 3.5” Hot Swappable HDD Bracket
Indicator1x HDD Status LED per HDD
1x HDD Failed LED per HDD
Expander Backplane1x 3.5" 6Gbps SAS/SATA HDD Backplane
mini SAS Connector (SFF-8087 including SGPIO)
4-Pin Plug DC (+5V / +12V)
Fan Module2x Blower Fan Modules
EnvironmentalOperating: 10˚C~35˚C (50˚F~94.9˚F)
Non-operating: -40˚C~70˚C (-40˚F~158˚F), 5% ~85% Non-condensing
Part NameOrder CodeDescriptionMSRP (USD)Gallery
3.5" Hard Drive CaddyHDC35-002-BL3.5", BlueCall
3.5" Hard Drive CaddyHDC35-002-BR3.5", BrownCall
3.5" Hard Drive CaddyHDC35-001-BL3.5", BlueCall
3.5" Hard Drive CaddyHDC35-001-BR3.5", BrownCall
DescriptionVersionSizeUpload DateDownload Link
Data Sheet1.0304KB2012-02-09
SKU NumberDescriptionGallery
T304BMR-434321x Mobile Rack
4x 3.5” Hot Swappable HDD Caddy
2x Blower Fan Modules
1x Backplane
