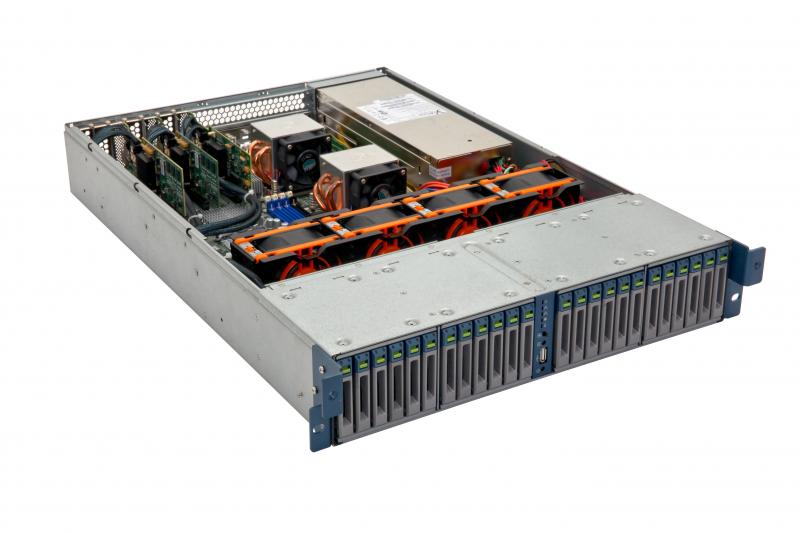

2U24SSR Ge.2

Features & Benefits

  • High-efficiency 720w (1+1) redundant power supply
  • Support up to 12 Gb/s SAS/SATA
  • Support up to SSI EEB 12" x 13" compliant motherboard
  • Fully utilized space to support 24x 2.5" hot-swap HDD
  • 4x 80 mm hot-swappable system cooling fan module
  • EMCU provides audible alarm and LED function
  • Excellent anti-vibration mechanical design and thermal solution
  • Outstanding wire-less design
2U24SSR Gen.2
Form Factor (H) x (W) x (D)2RU 24-Bay, 19" Rackmount Chassis
3.47" x 17.2" x 25.5"
88.1 mm x 437 mm x 647.7 mm
Drive Bay24x 2.5” Hot Swappable HDD Caddy
Mother BoardUp to SSI EEB 12" x 13" (305 mm x 330 mm)
ProcessorDual or Single Intel® or AMD® Processors
Control Panel1x System Power Button
1x System Reset Button
1x Alarm Release Button
1x USB 2.0 Port
Indicator1x Power Status LED
2x Network Activity LED
1x Overheat LED
1x Fan Failed LED
1x HDD Status LED per HDD
1x HDD Failed LED per HDD
1x Fan Operated LED per Fan Module
1x Fan Failed LED per Fan Module
Expansion Slot7x Low Profile Expansion Slot or 3x Standard Expansion Slot
Expander Backplane6x 2.5" 12Gbps SAS/SATA HDD Backplane
mini SAS Connector (SFF-8643 including SGPIO)
Fan Module4x 80 mm Hot Swappable Fan Module
Electrical RequirementHigh-efficiency 720w (1+1) Redundant Power Supply
W/ PFC, AC 90~264V Full Range, 47Hz~63Hz
Monitor and AlarmOverheat Monitoring and Warning
System Fan Module Status Monitoring and Warning
Power Supply Unit Status Monitoring and Warning
HDD Status Monitoring and Warning
EnvironmentalOperating: 10˚C~35˚C (50˚F~94.9˚F)
Non-operating: -40˚C~70˚C (-40˚F~158˚F), 5% ~85% Non-condensing
WeightEnclosure: 20kg (44Ibs)
Packaged: 28kg (62Ibs)
(Hard Drive and Slide Rail Not Included)
Package Dimension (H) x (W) x (D)291 mm × 591 mm × 881 mm
Part NameOrder CodeDescriptionMSRP (USD)Gallery
27" Ball Bearing SlideSLR-DS-2701 27", Ball BearingCall
2.5" Hard Drive CaddyHDC25-002-BL2.5", BlueCall
2.5" Front CoverHDC25-901-GR2.5", GreenCall
8038 Fan ModuleFMA-8038-SU80 x 80 x 38 mmCall
8038 Fan Module Base KitFMBA-8038-A4 x 8038 Fan ModuleCall
2U Front BezelFP2BSB-ZV2U, Dust proof filterCall
PCIe Riser CardRC-1U16-1S-A1U, 1Slot PCIe 16xCall
DescriptionVersionSizeUpload DateDownload Link
Data Sheet1.0310KB2018-06-06
SKU NumberDescriptionGallery
2U24SSR-899351x 2RU, 19" Rackmount Chassis (7x Low Profile Expansion Slot)
24x 2.5” Hot Swappable HDD Caddy
1x 720w (1+1) Redundant Power Supply
4x 80mm Hot Swappable Fan Module
6x 2.5" HDD Backplane
