Features & Benefits

  • High-efficiency 720w (1+1) redundant power supply
  • Support up to 6.0 Gbps SAS/SATA
  • Support up to SSI EEB 12" x 13" compliant motherboard
  • Fully utilized space to support 8x 3.5" and 2x 2.5" hot-swap HDD
  • Support 1x Ultra slim type DVD
  • 4 x 80 mm hot-swappable system cooling fan module
  • EMCU provides audible alarm and LED function
  • Excellent anti-vibration mechanical design and thermal solution
  • Outstanding wire-less design

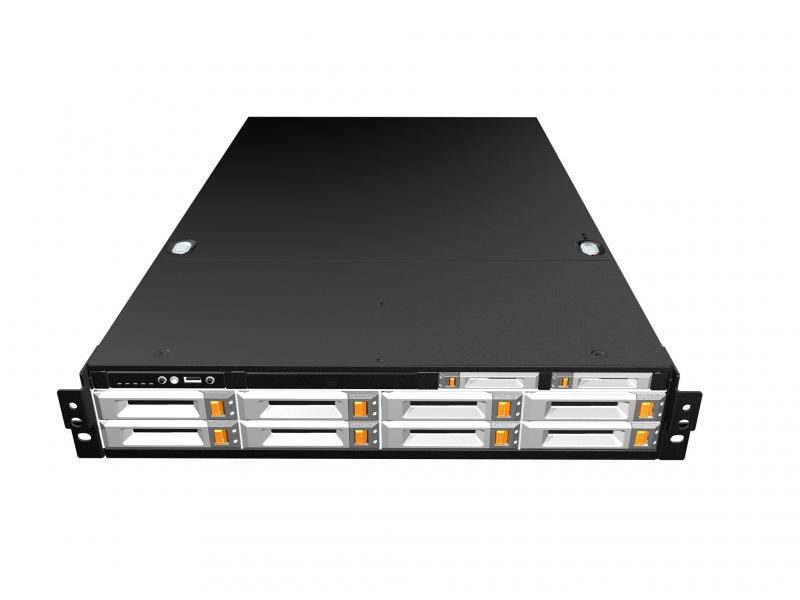

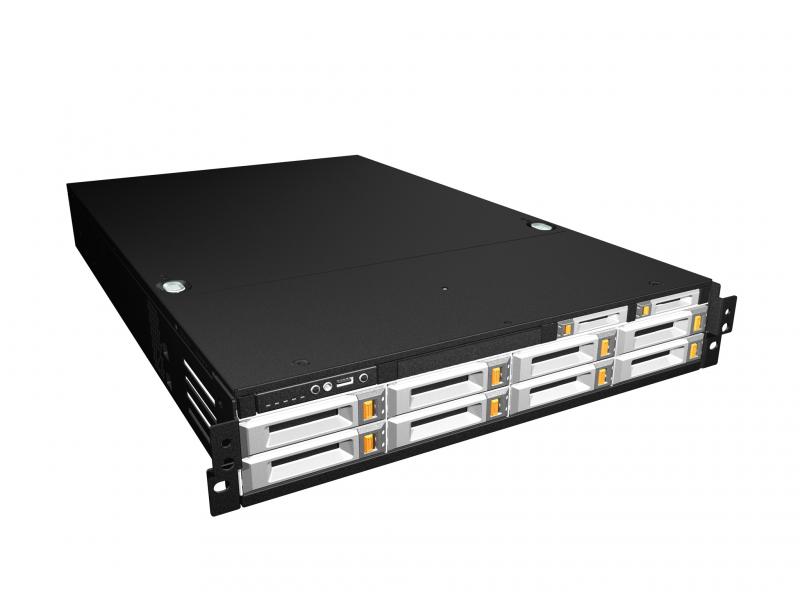

Form Factor (H) x (W) x (D)2RU 10-Bay, 19" Rackmount Chassis
Drive Bay8x 3.5” Hot Swappable HDD Caddy
2x 2.5” Hot Swappable HDD Caddy
1x Ultra Slim Type ODD (Option)
Mother BoardUp to SSI EEB 12" x 13" (305 mm x 330 mm)
ProcessorDual or Single Intel® or AMD® Processors
Control Panel1x System Power Button
1x System Reset Button
1x Alarm Release Button
1x USB 2.0 Port
Indicator1x Power Status LED
2x Network Activity LED
1x Overheat LED
1x Fan Failed LED
1x HDD Status LED per HDD
1x HDD Failed LED per HDD
1x Fan Operated LED per Fan Module
1x Fan Failed LED per Fan Module
Expansion Slot7x Low Profile Slot
Expander Backplane2x 3.5" 6Gbps SAS/SATA HDD Backplane
1x 2.5" 6Gbps SAS/SATA HDD Backplane
mini SAS Connector (SFF-8087 including SGPIO) (3.5" HDD Backplane)
SAS/SATA 7pin Connector (2.5" HDD Backplane)
Fan Module4x 80 mm Hot Swappable Fan Module
Electrical RequirementHigh-efficiency 720w (1+1) Redundant Power Supply
W/ PFC, AC 90~264V Full Range, 47Hz~63Hz
Monitor and AlarmOverheat Monitoring and Warning
System Fan Module Status Monitoring and Warning
Power Supply Unit Status Monitoring and Warning
HDD Status Monitoring and Warning
EnvironmentalOperating: 10˚C~35˚C (50˚F~94.9˚F)
Non-operating: -40˚C~70˚C (-40˚F~158˚F), 5% ~85% Non-condensing
Part NameOrder CodeDescriptionMSRP (USD)Gallery
27" Ball Bearing SlideSLR-DS-2701 27", Ball BearingCall
2.5" Hard Drive CaddyHDC25-002-BL2.5", BlueCall
2.5" Hard Drive CaddyHDC25-002-BR2.5", BrownCall
3.5" Hard Drive CaddyHDC35-002-BL3.5", BlueCall
3.5" Hard Drive CaddyHDC35-002-BR3.5", BrownCall
2.5" Hard Drive CaddyHDC25-001-BL2.5", BlueCall
2.5" Hard Drive CaddyHDC25-001-BR2.5", BrownCall
3.5" Hard Drive CaddyHDC35-001-BL3.5", BlueCall
3.5" Hard Drive CaddyHDC35-001-BR3.5", BrownCall
8038 Fan ModuleFMA-8038-SU80 x 80 x 38 mmCall
8038 Fan Module Base KitFMBA-8038-A4 x 8038 Fan ModuleCall
Ultra Slim Type DVDODD-S95-SDVD/CD-Rewritable DriveCall
720w Power ModulePMU-720Y2-2721720w Call
2.5 inch HDD ConverterHD-CVR-036Gb/s, SAS/SATA/SSDCall
DescriptionVersionSizeUpload DateDownload Link
Data Sheet2.01MB2015-09-21
