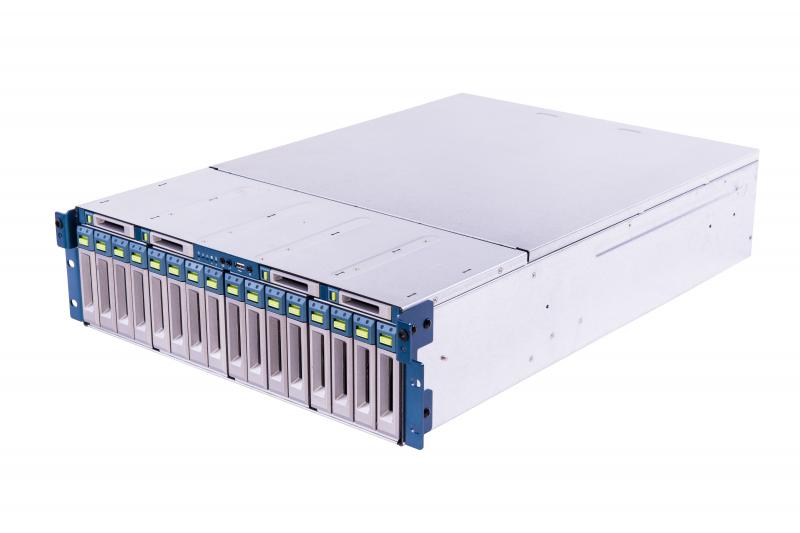

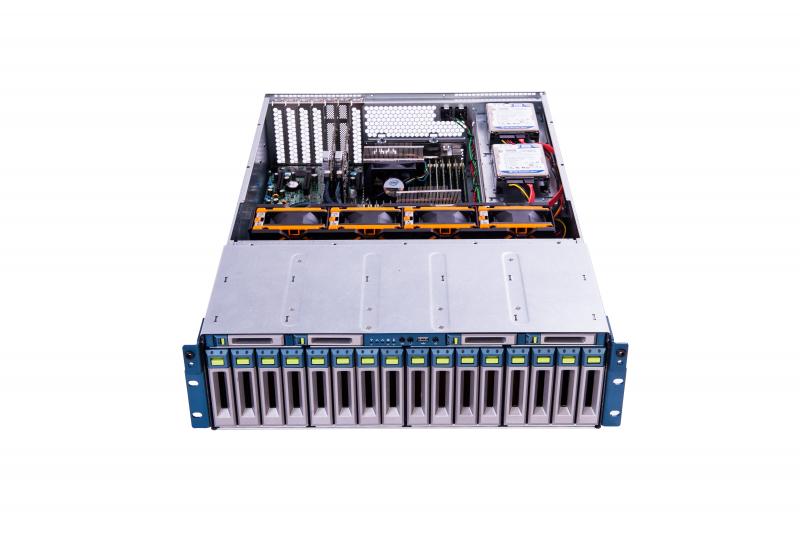

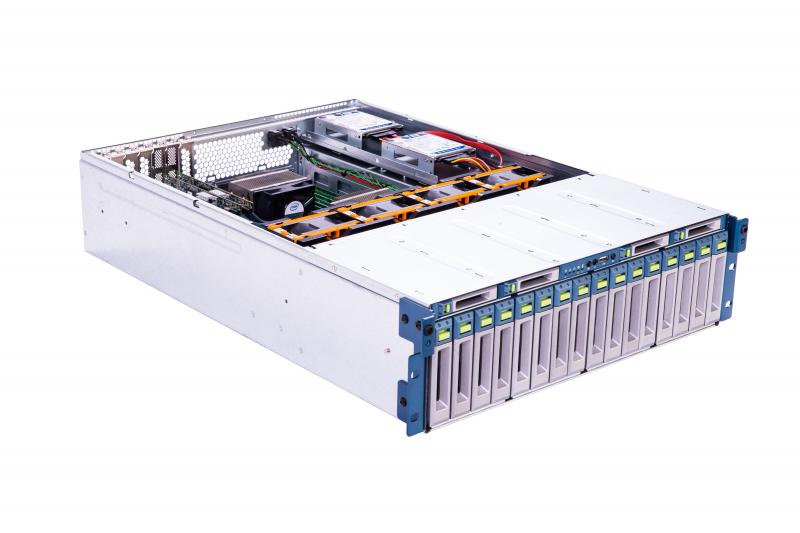

3U4GHYB

Features & Benefits

  • High-efficiency 720w (1+1) redundant power supply
  • Support up to 6.0 Gbps SAS/SATA
  • Support up to SSI EEB 12" x 13" compliant motherboard
  • Fully utilized space to support 16x 3.5" and 4x 2.5" hot-swap HDD
  • 4x 80 mm Hot-swappable system cooling fan module
  • EMCU provides audible alarm and LED function
  • Excellent anti-vibration mechanical design and thermal solution
  • Outstanding wire-less design
3U4GHYB
Form Factor (H) x (W) x (D)3RU 20-Bay, 19" Rackmount Chassis
5.19" x 17.2" x 25.38"
131.7 mm x 437 mm x 644.7 mm
Drive Bay16x 3.5” Hot Swappable HDD Caddy
4x 2.5” Hot Swappable HDD Caddy
2x 2.5" Internal HDD Bracket (Support 4x 2.5" HDD)
Mother BoardUp to SSI EEB 12" x 13" (305 mm x 330 mm)
ProcessorDual or Single Intel® or AMD® Processors

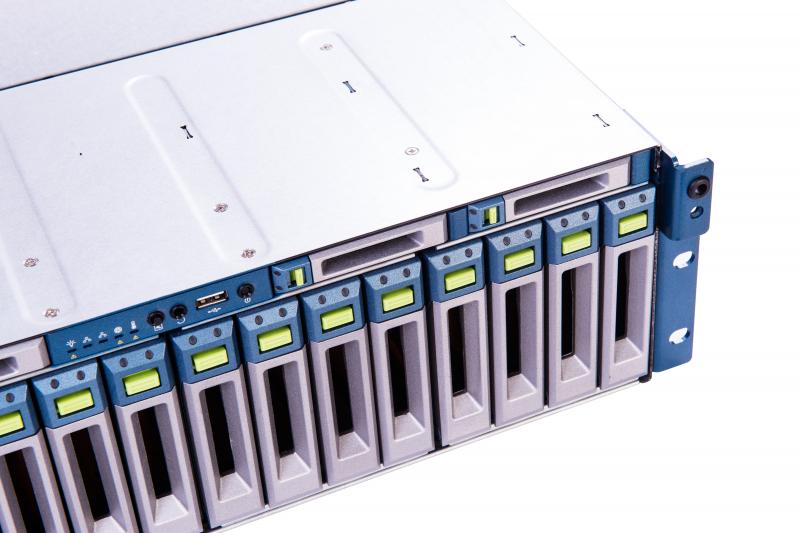

Control Panel1x System Power Button
1x System Reset Button
1x Alarm Release Button
1x USB 2.0 Port
Indicator1x Power Status LED
2x Network Activity LED
1x Overheat LED
1x Fan Failed LED
1x HDD Status LED per HDD
1x HDD Failed LED per HDD
1x Fan Operated LED per Fan Module
1x Fan Failed LED per Fan Module
Expansion Slot7x Standard Expansion Slot
Expander Backplane4x 3.5" 6Gbps SAS/SATA HDD Backplane
2x 2.5" 6Gbps SAS/SATA HDD Backplane
mini SAS Connector (SFF-8087 including SGPIO) (3.5" HDD Backplane)
SAS/SATA 7pin Connector (2.5" HDD Backplane)
Fan Module4x 80 mm Hot Swappable Fan Module
Electrical RequirementHigh-efficiency 720w (1+1) Redundant Power Supply
W/ PFC, AC 90~264V Full Range, 47Hz~63Hz
Monitor and AlarmOverheat Monitoring and Warning
System Fan Module Status Monitoring and Warning
Power Supply Unit Status Monitoring and Warning
HDD Status Monitoring and Warning
EnvironmentalOperating: 10˚C~35˚C (50˚F~94.9˚F)
Non-operating: -40˚C~70˚C (-40˚F~158˚F), 5% ~85% Non-condensing
WeightEnclosure: 23kg (51Ibs)
Packaged: 31kg (68Ibs)
(Hard Drive and Slide Rail Not Included)
Package Dimension (H) x (W) x (D)360 mm × 591 mm × 881 mm
Part NameOrder CodeDescriptionMSRP (USD)Gallery
27" Ball Bearing SlideSLR-DS-2701 27", Ball BearingCall
3.5" Hard Drive CaddyHDC35-002-BL3.5", BlueCall
3.5" Front CoverHDC35-901-GR3.5", GreenCall
8038 Fan ModuleFMA-8038-SU80 x 80 x 38 mmCall
8038 Fan Module Base KitFMBA-8038-A4 x 8038 Fan ModuleCall
3U Front BezelFP3CSB-TV3U, Dust proof filterCall
720w Power ModulePMU-720Y2-2721720w Call
2.5 inch HDD ConverterHD-CVR-036Gb/s, SAS/SATA/SSDCall
DescriptionVersionSizeUpload DateDownload Link
Data Sheet4.0361KB2015-09-21
SKU NumberDescriptionGallery
3U4GHYB-119261x 3RU, 19" Rackmount Chassis
16x 3.5” Hot Swappable HDD Caddy
4x 2.5” Hot Swappable HDD Caddy
2x 2.5" Internal HDD Bracket
1x 720w (1+1) Redundant Power Supply
4x 80mm Hot Swappable Fan Modules
4x 3.5" HDD Backplane
2x 2.5" HDD Backplane
4x mini SAS Cable
