Features & Benefits

  • High-efficiency 400w single power supply
  • Support up to 6.0 Gbps SAS/SATA
  • Support up to ATX 12" x 9.6" compliant motherboard
  • Fully utilized space to support 4x 3.5" hot-swap HDD and 2x 2.5" internal HDD
  • 6x Non-hot swap cooling fan
  • Excellent anti-vibration mechanical design and thermal solution
  • Outstanding wire-less design

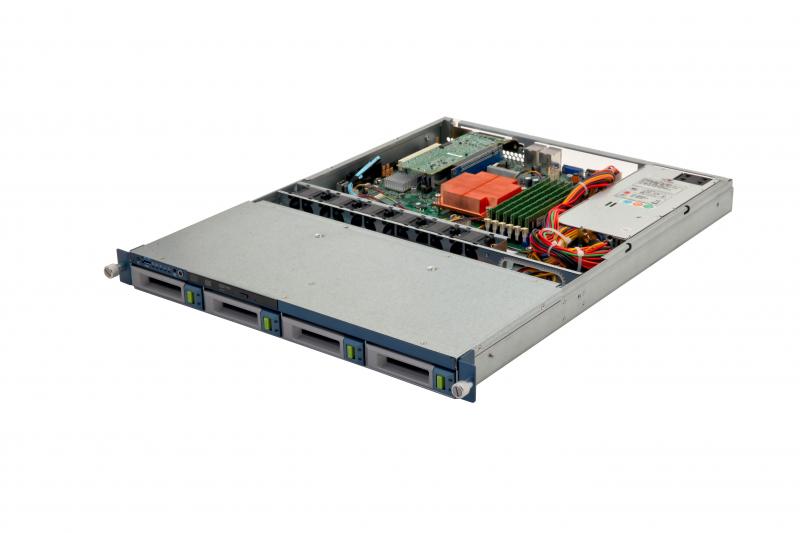

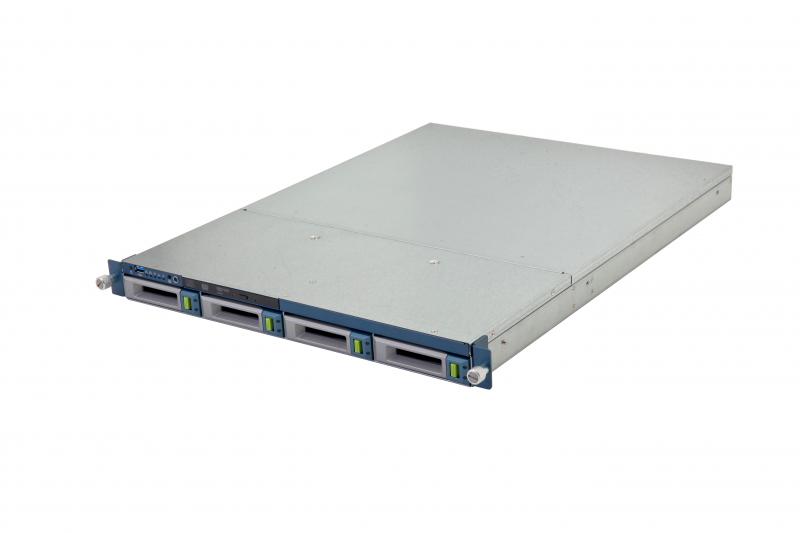

Form Factor (H) x (W) x (D)1RU 4-Bay, 19" Rackmount Chassis
1.71" x 17.2" x 22.93"
43.5 mm x 437 mm x 582.4 mm
Drive Bay4x 3.5” Hot Swappable HDD Caddy
2x 2.5" Internal HDD Bracket (up to 9.5 mm high)
1x Ultra Slim Type ODD (Option)

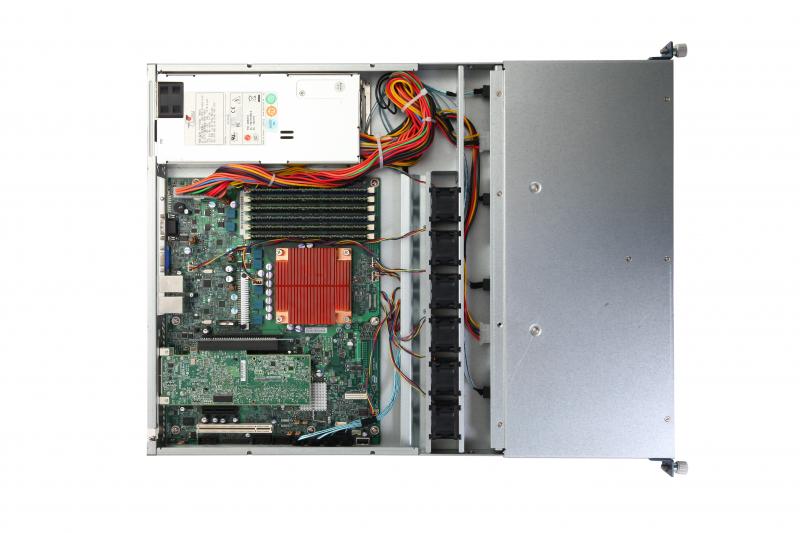

Mother BoardUp to ATX 12"x 9.6" (305 mm x 244 mm)
ProcessorDual or Single Intel® or AMD® Processors

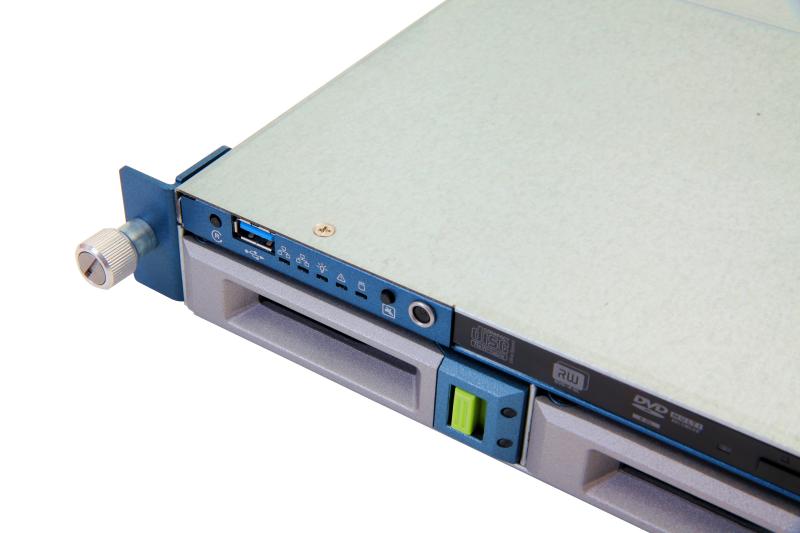

Control Panel1x System Power Button
1x System Reset Button
1x USB 2.0 Port
Indicator2x Network Activity LED
1x Power on LED
1x Power Fail LED
1x Fan Failed LED
1x HDD Access LED
1x HDD Status LED per HDD
1x HDD Failed LED per HDD
Expansion Slot2x Standard Expansion Slot
1x Low Profile Expansion Slot
Expander Backplane2x 3.5" 6Gbps SAS/SATA HDD Backplane
SAS/SATA 7pin Connector
Fan Module6x Non-Hot Swap Cooling Fan
Electrical RequirementHigh-efficiency 400w Single Power Supply
W/ PFC, AC 90~264V Full Range, 47Hz~63Hz
EnvironmentalOperating: 10˚C~35˚C (50˚F~94.9˚F)
Non-operating: -40˚C~70˚C (-40˚F~158˚F), 5% ~85% Non-condensing
WeightEnclosure: 11kg (24Ibs)
Packaged: 19kg (42Ibs)
(Hard Drive and Slide Rail Not Included)
Package Dimension (H) x (W) x (D)241 mm × 591 mm × 881 mm
Part NameOrder CodeDescriptionMSRP (USD)Gallery
22" Ball Bearing SlideSLR-DS-220222", Ball BearingCall
3.5" Hard Drive CaddyHDC35-002-BL3.5", BlueCall
3.5" Front CoverHDC35-901-GR3.5", GreenCall
4028 Fan ModuleFMA-4028-ND40 x 40 x 28 mmCall
4028 Fan ModuleFMA-4028-SU40 x 40 x 28 mmCall
1U Front BezelFP1CSB-IV1UCall
Ultra Slim Type DVDODD-S95-SDVD/CD-Rewritable DriveCall
PCIe Riser CardRC-1U16-1S-A1U, 1Slot PCIe 16xCall
2.5 inch HDD ConverterHD-CVR-036Gb/s, SAS/SATA/SSDCall
DescriptionVersionSizeUpload DateDownload Link
Data Sheet5.0461KB2013-08-23
SKU NumberDescriptionGallery
1U04BSR-993551x 1RU, 19" Rackmount Chassis
4x 3.5” Hot Swappable HDD Caddy
2x 2.5" Internal HDD Bracket
1x 400w Single Power Supply
1x Ultra Slim Type DVD
6x Non-Hot Swap Dual-Rotor Cooling Fan
2x 3.5" HDD Backplane
